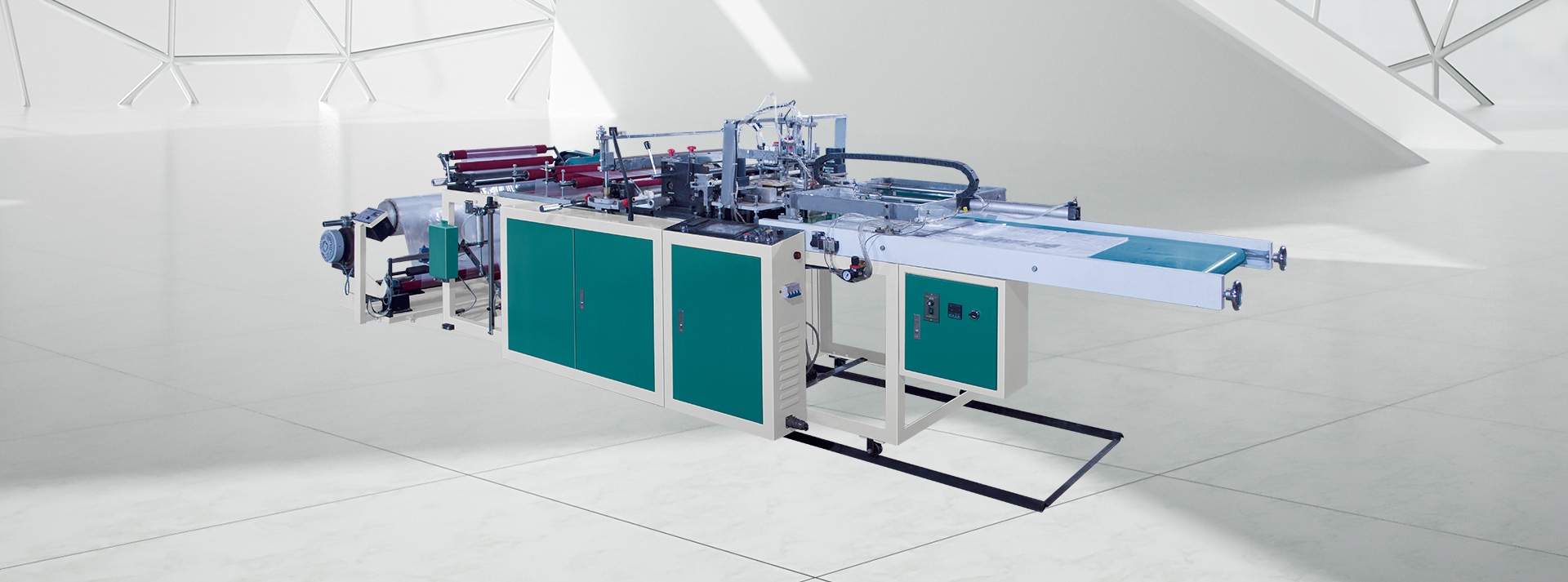

ZLD-500E
电脑控制资料册内页封切机
Computerized Sheet Protector
Making Machine
该机是一台专业生产11孔资料袋的设备,采用PP片材卷料从放卷 到成品全自动制成。
本机采用PLC系统作为整机主控
5.7寸触摸式人机界面,安川交流伺服定长具有自动计数、提前报警、到数停机、个数显示、高位停车等功能。
This machine specialized in producing 11 sheet protector bag adopt pp sheet.
This machine adopts PLC as main controller.
5.7 inches touch screen, YASKAWA servo motor for fixed length.It has functions such as: auto-counting, advanced alarming, stopping when a set of bags been made, showing bag number and sealer and cutter stop at the highest position etc.
主要技术参数 | Main Technical Parameter | SYJ-600 |
---|---|---|
适用范围 | Suitable range | 专业制作A4资料册内页、11孔内页(A4规格单线) |
有效棚速度 | Machine speed | 60-110次/分钟(与材料的热封性有关) |
有效制袋宽度 | Max width of PP sheet roll material | 500mm |
有效制袋长度 | Length of bag making | 200-600mm |
适用材料 | material type | 一卷PP筒料 |
有效封切厚度 | PP sheet roll Suitable sealing and cutting thickness | 0.02mm-0.05mm |
外形尺寸 | Overall Dimension | 4500×1400×1700 mm(L×W×H) |
工作电压 | Working Voltag | 三相四线 AC380V 50HZ |
整机备电 | Power | 6.5kw |
注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
