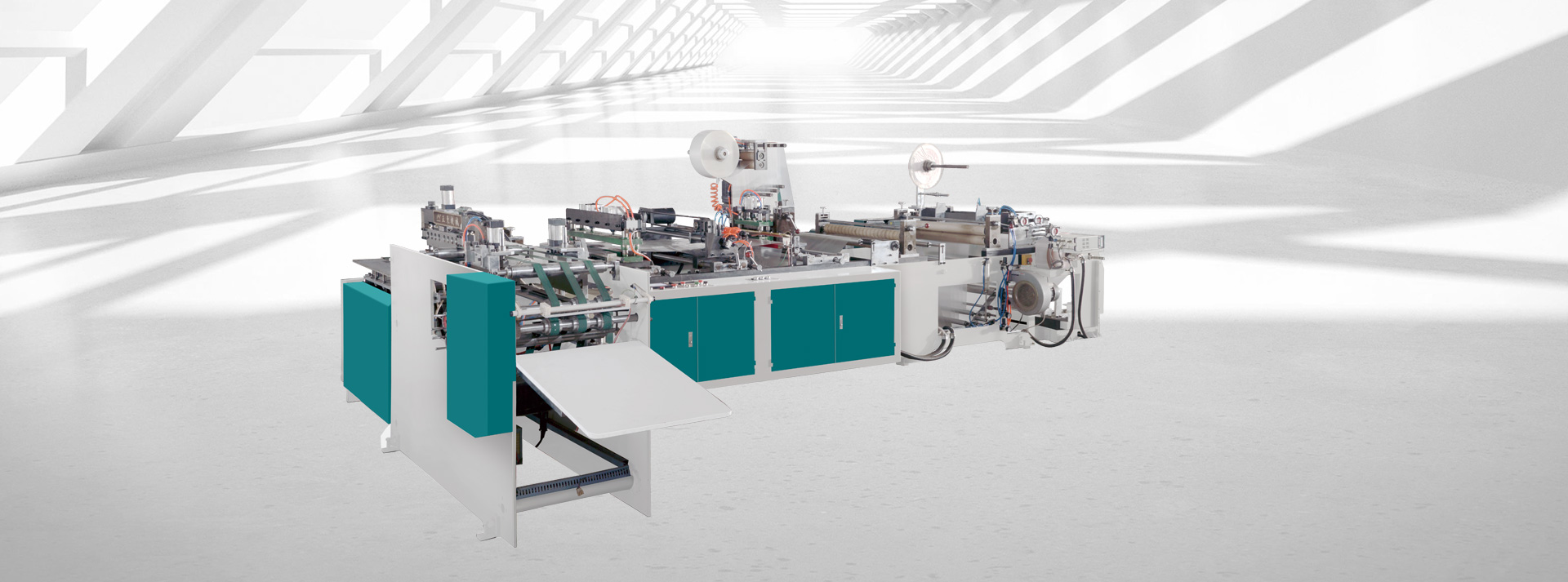

SPD-600

电脑控制书皮袋制袋机

Automatic Book Cover Bag
Making Machine

机器概述
  1. 该机是一台专业生产PP书皮袋(书套袋),采用PP片材卷料从放卷到成品全自动制作。

  2. 该机采用五步进高精度定长系统,PLC主控,触摸式人机操作界面。

  3. 配有自动计数、到数报警、到数停机、个数显示、高位停车、自动送料、自动贴片、自动冲压及烫封时间可调等功能。

Machine Overview
  1. This is a professional machine to make PP book covers (book pockets) from PP sheet material roll to final products automatically.

  2. This machine uses five steps high precision length-fixed control system,PLC main controller and touch screen operation interface.

  3. This machine has many function function such as auto counting, alarming in advance, stopping at the set number, number display, stop at the high position, auto feeding, auto patching, auto punch and heat sealing etc.

主要技术参数Main Technical ParameterSPD-600
适用材料Suitable materialPP sheet film roll
有效制造速度Effective manufacturing speed每分钟不少于30-40个(以中号袋样为准)
******制袋宽度Max with of bag≤610mm (指袋子展开时的******宽度)
******制袋长度Max length of bag≤350mm (指袋子制成成品后的******长度)
有效封切厚度Effective thickness for sealing and cutting0.08mm-0.25mm
******放卷直径Maximum unwinding diameterΦ800mm
外形尺寸Overall Dimension8500mm×2600mm×2000mm (L×W×H)
工作电压Voltage三相 AC380V 50Hz 15KW
机械重量Machine weight约 2.5T

注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
