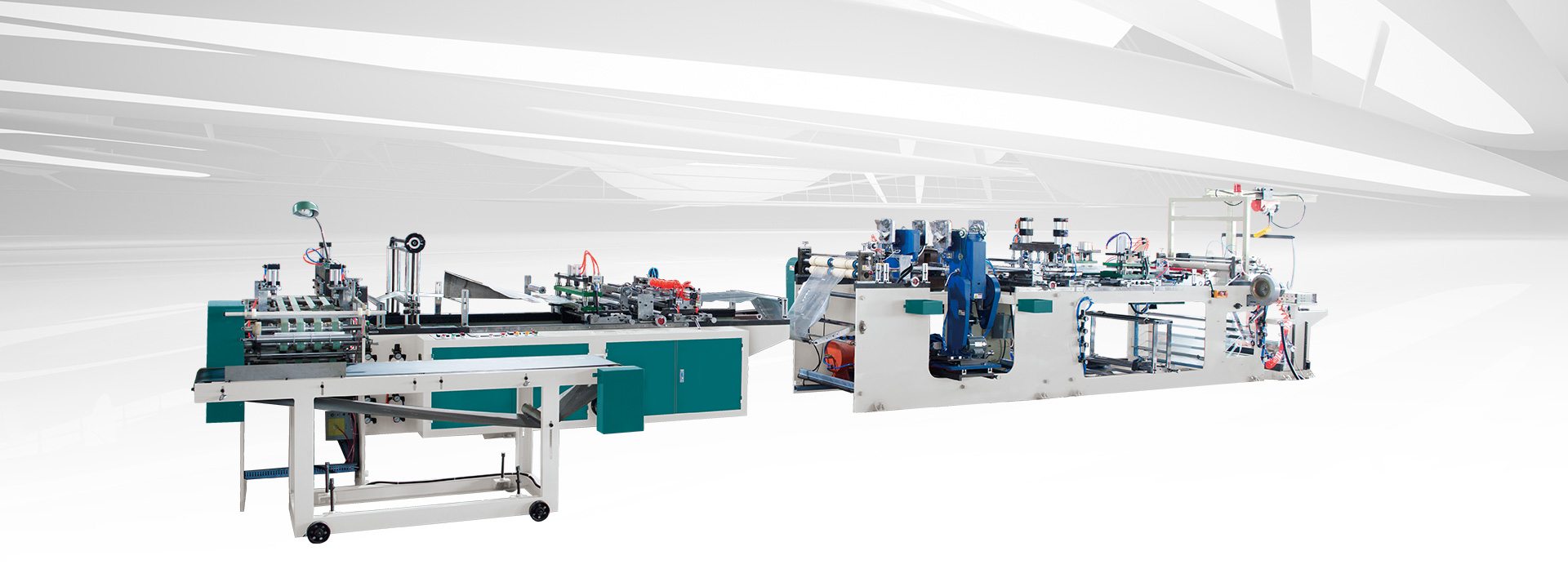

NKD-600

全自动纽扣袋制袋机

NKD- 209 Fully Automatic Button File
Folder Making Machine

机器概述
  1. 本机采用PP片材卷料全自动制作209按扣文件袋。

  2. 本机采用PLC电脑,伺服电机定长拉料,触摸式人机操作界面,操作简便,产品规格一致,封口牢固,质量美观。

  3. 整机主要包括:整机主控系统,送料部分,自动上扣部分,放卷部分,切断,封口部分等部分组成。

  4. 本机选择精密耐用打孔模具,其故障率低,并配合高科技电子控制,使打孔位置非常精确,不易跑位。

Machine Overview
  1. It adopts the PP sheet material to make 209 button file folder fully automatic.

  2. It adopts man touch interface with PLC computer,servo motor with fixed length to pull material.Convenient operating,secure sealing,high quality and beautiful appearance.

  3. lncluding:main control system,feeding part,atomatic setting button part,unwinding part,cutting part and sealing part etc.

  4. It adopts punch die with high precision and durability,low fault rate.lt adopts high technical electric equippment to control,making the punch position with high precision.

主要技术参数Main Technical ParameterDNG-650F
有效制造速度Effective speed30-60张/分钟
有效宽度Effective width≤600mm (指袋子展开时的******宽度)
有效长度Effective length≥350mm (指袋子制成成品后的******长度)
适用材料Suitable materialPP sheet material
******放卷直径Maximum diameter of unwindingΦ600mm
有效封切厚度Effective thickness of sealing and cutting0.09-0.2mm
外形尺寸Overall Dimension85000×2600×2000mm(L×W×H)
工作电压Working Voltage三相 AC380V50HZ
整机功率Power9kw
机械重量Weight2.5T

注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
