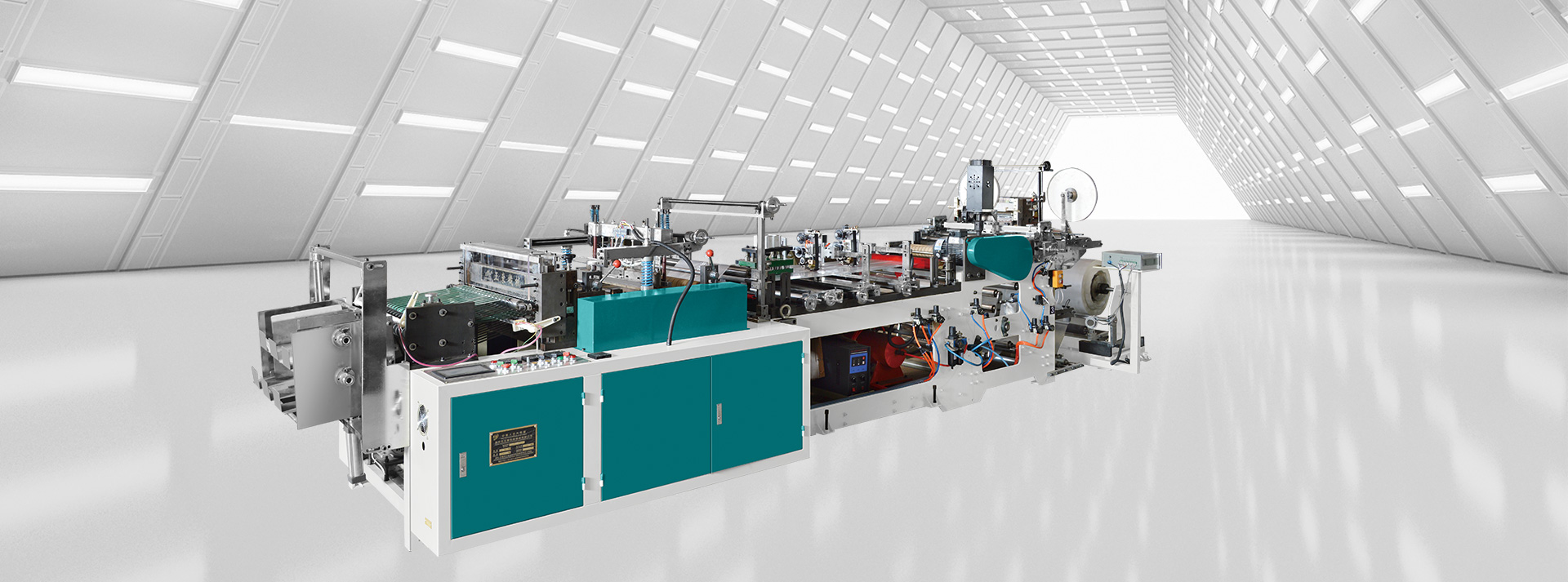

ZLD-500D

筒料双线资料册内页封切机

Computerized Multi-functional Two-line Sheet
Protector Sealing And Cutting Machine

机器概述

本机是专为资料袋设计,采筒料作业从原料到成品,可在全自动的生产在线完成,节省人工成本、增加产能。

Machine Overview

This machine is designed for sheet protector in two lines (two pockets one time), fromi the raw tubular material to final product, all are finished automatically, it can save labor cost and increase production ability.

主要技术参数Main Technical ParameterNKD-600
适用材料Suitable material重印PE、表印PE、CPP/TPE等片材卷料
最高机械速度Maximum machine speed180m/min
放卷有效宽度Effective unwinding width600mm
最大放卷直径Maximum unwinding diameterΦ1000mm
最大收卷直径Maximum rewinding diameterΦ1000mm
外形尺寸Overall Dimension4200×2900×1800 (L×W×H)
工作电压Voltage三相AC 380V 50Hz 12kw
机械重量Weight约1.8T

注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.

全面多样的产品
广泛的服务

品质铸就卓越
浙江省温州市平阳县万全镇
郑楼标准厂房园区创业路2号
技术支持:张    锋 13906872196
销       售:吴丹丹 13967758070
                  李广会 13806537370
