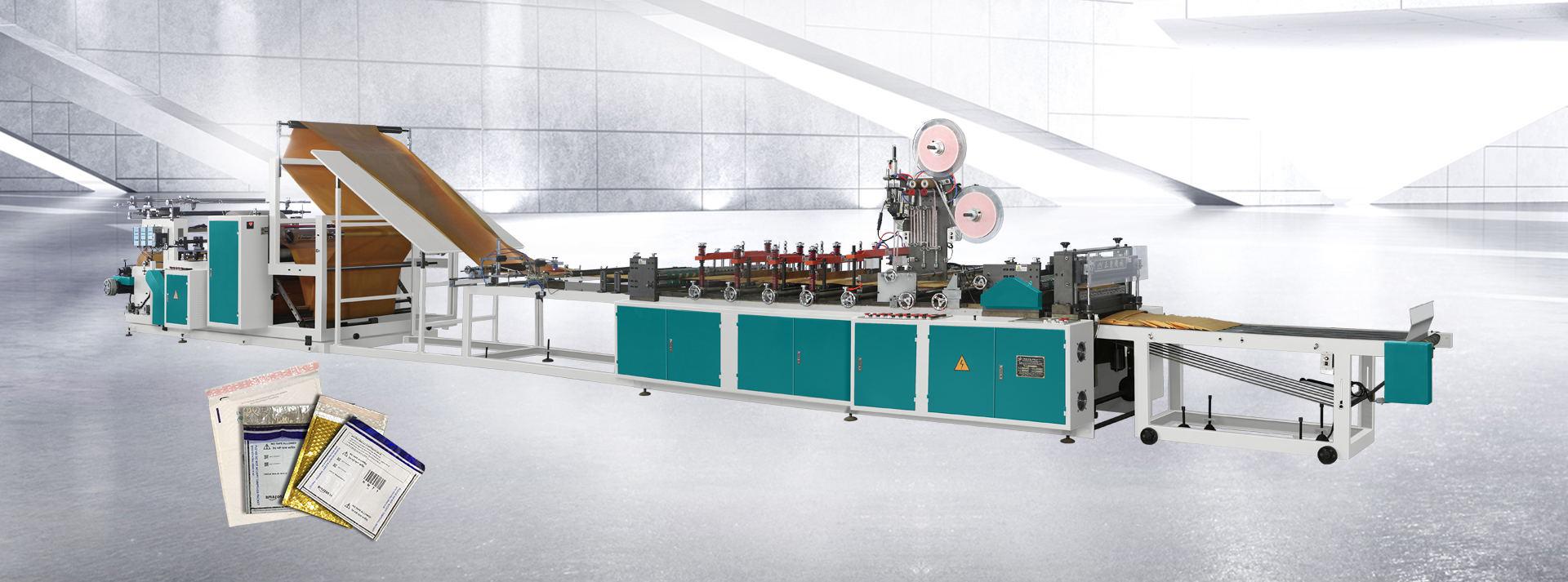

PSP-800

气泡缓冲保安袋制袋机

Bubble Buffer Security Bag
Making Machine

机器概述
  1. 本机是生产淋膜牛皮纸气泡信封和共挤膜气泡信封制作而设计的一出一和一出二定制专用机型。已经在气泡膜机上复合好的共挤膜气泡膜卷、镀铝膜气泡膜卷、珠光膜气泡膜卷也同样适用于本机型。

  2. 本机制袋方式:将林膜牛皮纸或共挤膜与PE气泡膜通过热复合辊加热粘合后,将复合好的材料经对折成型装置,再经热压横封成型后裁切成标准复合气泡信封。

  3. 该机采用了先进的运动控制技术,从原材料放卷到裁切成型,均由电脑控制,制出的袋子平整美观、粘合结实可靠,操作易懂方便,是一台高品质的专用制袋设备。

Machine Overview
  1. This machine is customized to make laminating Kraft and PE film bubble envelope in one line or double lines. And the machines are also suitable for making polythene film, aluminized film and pearl film bubble envelope.

  2. Method of making bags: First, make the laminating Kraft or PE film and bubble film together by heated laminating roller. Next fold the laminated material by folding devices. And then, seal the material by hot electric cross sealer. Finally cut the material and a standard laminated envelope is made.

  3. This machine is a specialized one with high quality and simple operation method .It adopts advanced motion control technology. And this machine is controlled by computer from unwinding to cutting. The envelopes made by this machine are good-looking and strong.

主要技术参数Main Technical ParameterPSP-650PSP-800
适用材料Suitable material共挤膜/珠光膜/牛皮纸和气泡膜共挤膜/珠光膜/牛皮纸和气泡膜
机械执行速度Machine speed40-110pcs/min40-110pcs/min
最大制袋宽度Maximum width of envelope600mm (包括信封的舌头)800mm (包括信封的舌头)
最大制袋长度Maximum length of envelope400mm400mm
有效放卷宽度Effective unwinding width: paper纸1200mm、气泡膜 1100mm纸1400mm、气泡膜1300mm
有效放卷直径Effective unwinding diameter纸Φ600mm、气泡膜Φ1300mm纸Φ600mm、气泡膜Φ1300mm
外形尺寸Overall Dimension15000×2200×2500 (L×W×H)15000×2200×2500 (L×W×H)
工作电压Voltage三相 AC380V 50Hz 25kw三相 AC380V 50Hz 25kw
机械重量Weight约5.3T约5.3T

注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
