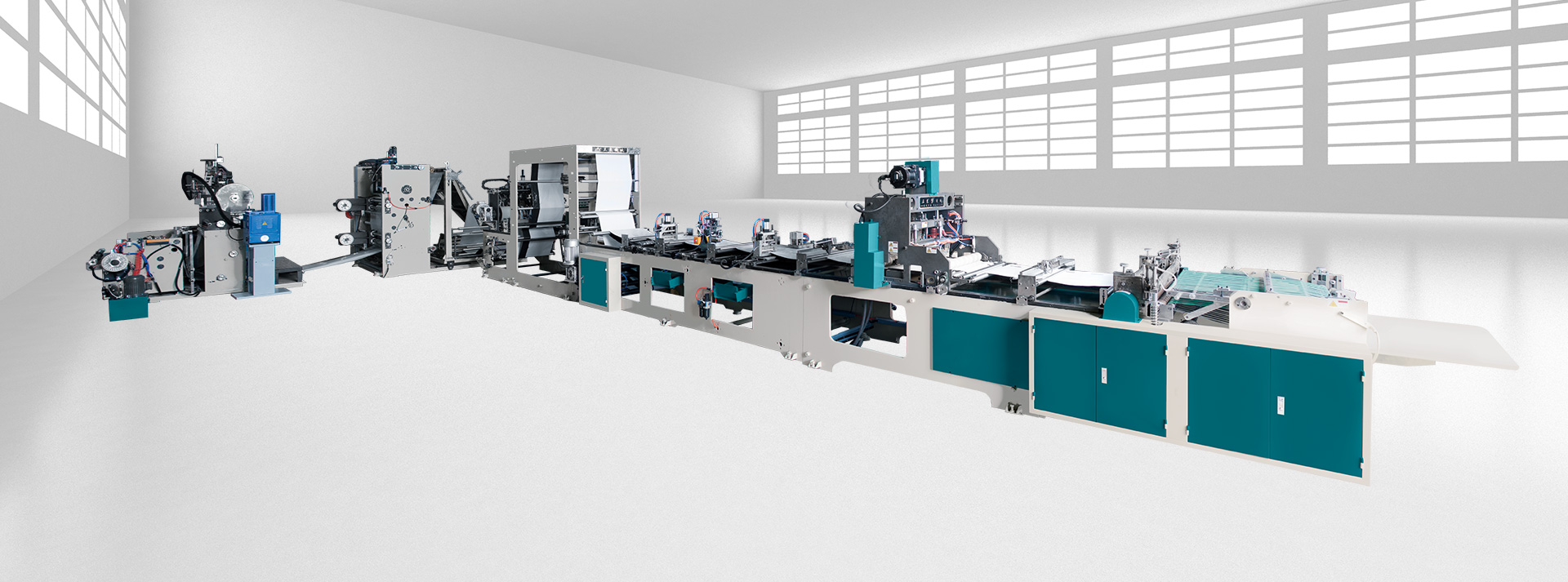

TF-700A

电脑控制保安袋制袋机

Security bag (STEB)making machine

机器概述
  1. 主控部分采用带多路DA输出的运动控制器主控,触摸式人机界面、伺服电机定长拉料,具有多点同控、自动计数、随机喷码、随机喷胶、到数停机、停送、计数显示、高位停车等功能。

  2. 色标跟踪采用进口电眼。

  3. 主机采用国产矢量变频器调速控制。

Machine Overview
  1. This machine adopts multi-channel DA output motion controller as mail control, touch screen as human machine interface, servo motor for pulling material, and it has many functions such as multipoint control, automatic counting, code spurting, glue spraying, stop when setted number of bag are finished, stop feeding, number showing, knife stop at highest position.

  2. This machine uses imported electirc eye for code mark tracking.

  3. Hose use vector inverter made in china as spee controling system.

主要技术参数Main Technical ParameterZD-1200B
适用材料Suitable materialPE膜
最高机械速度Maximum machine speed120个/分钟
有效制袋宽度Effective width of bag680mm
有效封切厚度Effective thickness of sealing and cutting0.05-0.2mm
最大放卷直径Maximum diameter of unwinding0600mm
外形尺寸Overall Dimension13000x4300x1950 (LxWxHmm)
工作电压Voltage三相 AC380V 50Hz 30KW
机械重量Machine Weight约6T

注:此图如因技术改进使技术参数及外型发生变化,恕不另行通知,请阁下参照合同签订的配置及示意图。
Note:Zhengdong reserve the right to change technical characteristics without previous advice.
